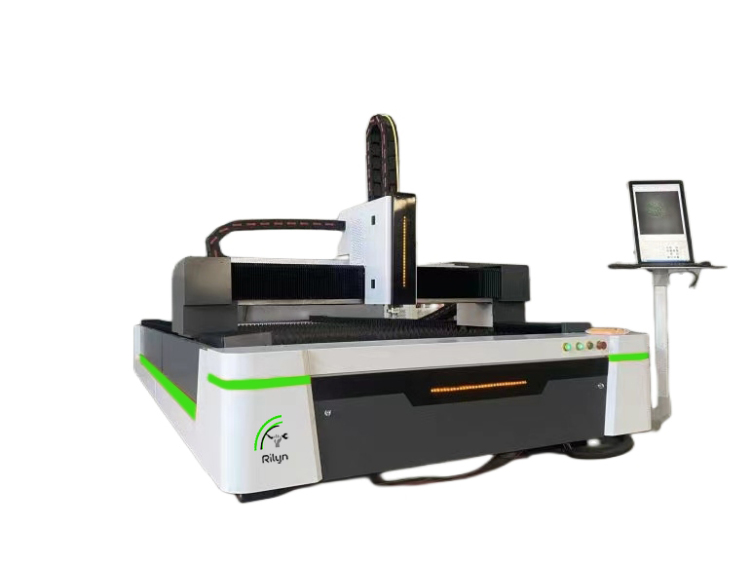

CNC Fiber Laser Cutting Machine RFL1530

CNC Fiber Laser Cutting Machine RFL1530

Item No.: 00125
The CNC Fiber Laser Cutting Machine RFL1530 is mainly used for cutting non-ferrous metals, carbon steel, stainless steel, aluminum, etc. The laser power can be optional according to the thickness of the metals differs.
Request Quote PDF Format
Description Application Technical details Review
Description

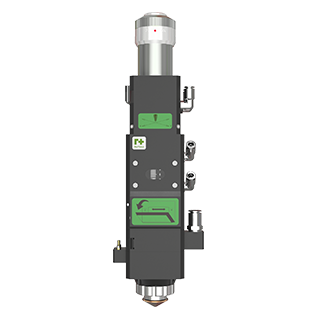

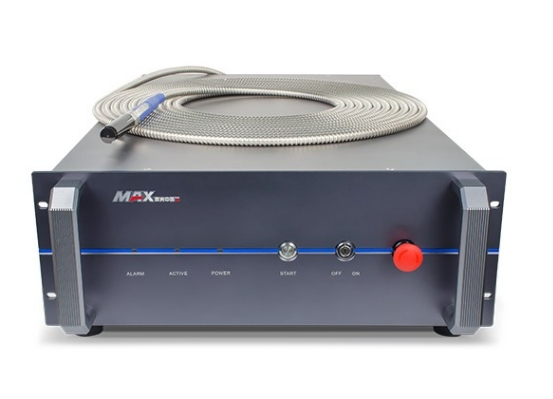

Raytools BT210S-Laser Cutting head                     Max 1000W laser source
Power Rating: 4kw                                                                   Max laser has higher electro-optical conversion efficiency (>30%),   Clear Aperture:28mm                                                               higher and more stable optical quality, and stronger altitude
Cover Glass:  φ27.9mm*4.1mm(Top)                                      stress-resisting capacity and it applies an optimized second-
φ24.9mm*1.5mm(Bottom)                                                       generation fiber transmission system to ensure a more stable and     Assist gas Pressure:≤25bar                                                     more sophisticated cutting effect in thick sheet cutting.

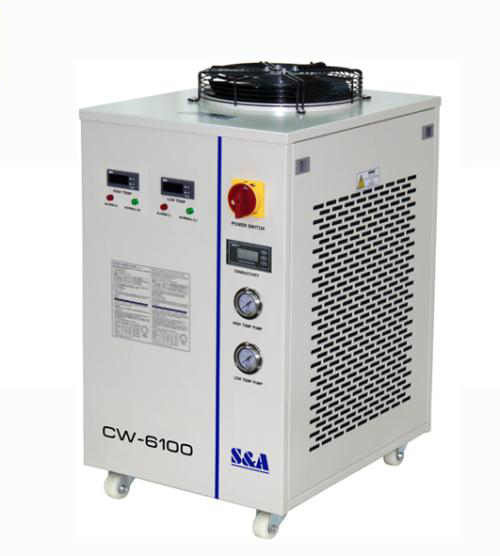

Water chiller                                                                 Linear guide rail
The temperature in the water chiller is an auto adjustment,          Top Taiwan linear guide rail has a middle preloading design.
mainly set up with 25 degrees around.                                            This makes the work more stable and precise.

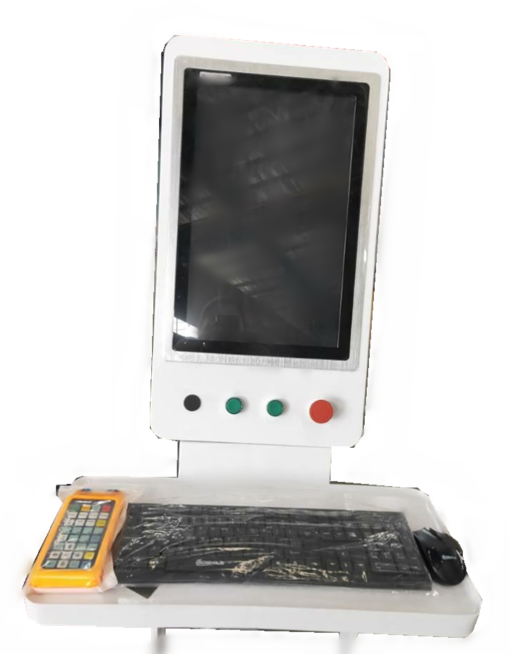

The reducer                                                            Cypcut control
small in size bears big torque, and has high driving               The Cypcut is a three-dimensional cutting software that can
efficiently that reduces wide range, has high precision,         directly reads UG, Solid works software export IGS format files
high, torque backlash, and very quiet.                                    automatically extract the section to be cut and the track to be cut
                                                                                without manual editing and selection.
Application
The CNC Fiber Laser Cutting Machine RFL1530 is a new type of high-precision processing equipment, which has the advantages of high precision, fast speed, environmental protection, and energy saving. The surface of the workpiece processed by the fiber laser cutting machine is smoother, and it is suitable for processing various metal plates.

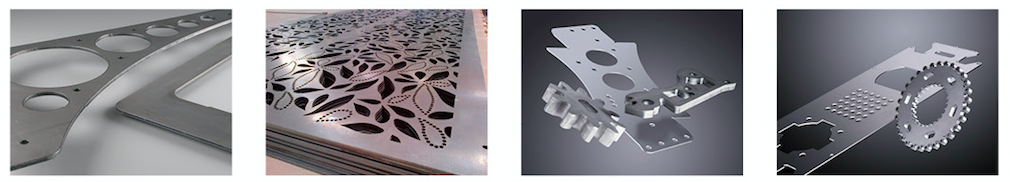

Samples

Technical details

Item

Parameters

Unit

Machine model

RFL1530



Laser Source

Max 1000

w

Water cooler Power

1

kw

Software

Cypcut



Guide

Taiwan



Rack

Taiwan



Servo Motor

Japanese Fuji

750W

Reducer

Japanese SHIMPO



Minimum cutting width

0.08-0.1

mm

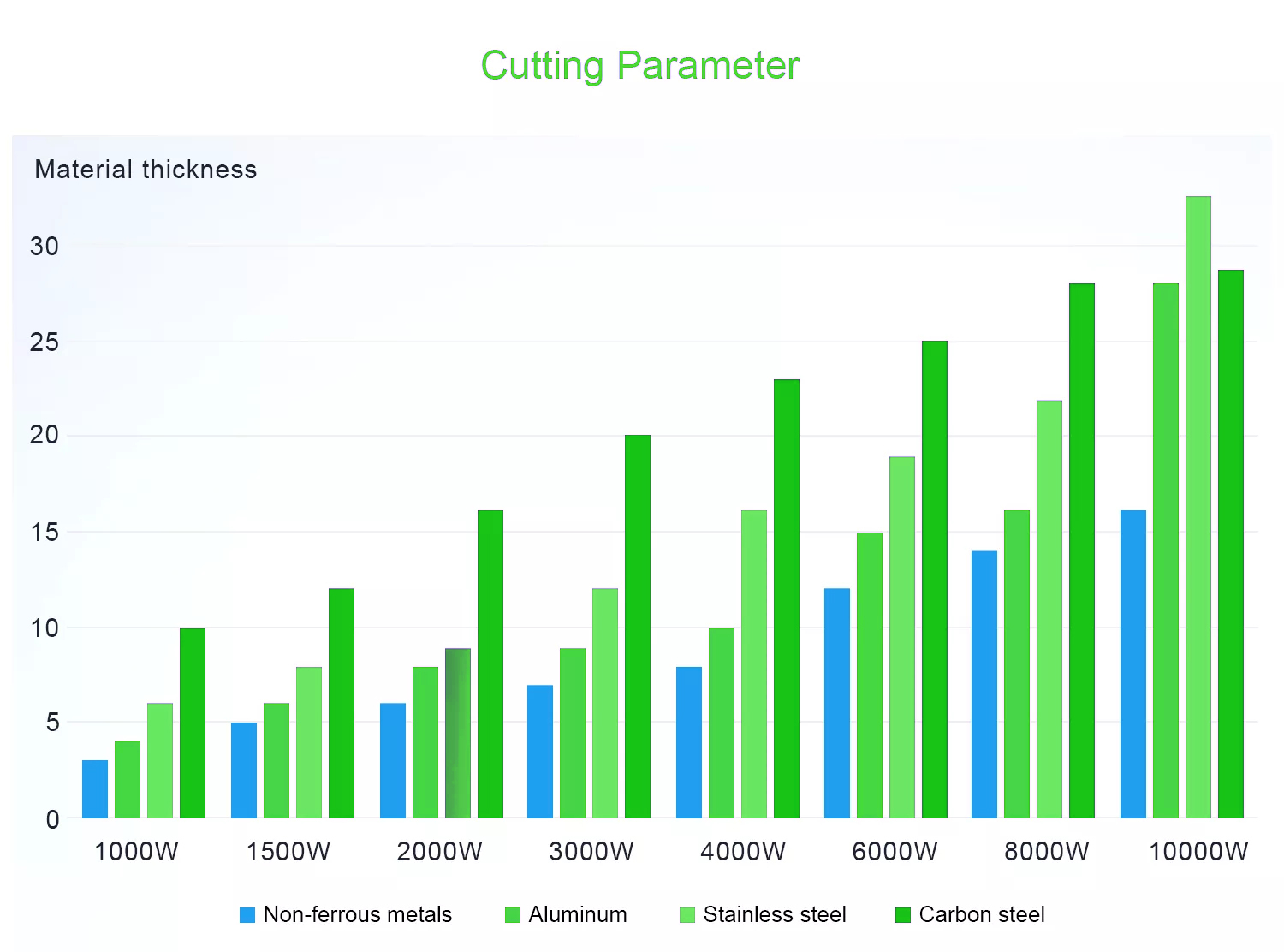

Maximum cutting thickness

10 Carbon steel

   6  stainless steel

mm

Maximum moving speed

80

m/min

Electricity requirements

380/50,60

v/hz

Graphic Format Supported

PRO/E.UG, Solidworks



Acceleration

1

G

Total power

7

kw

Presser of N2/O2/AIR

15-20/6-8/15-30

bar

Total Weight

3

t

Work per day

16

h

Lay out

4.7*2.3*1.6

m

Oil Box

Auto Oil Injection System
